تفاصيل المنتج:
مكان المنشأ: الصين
اسم العلامة التجارية: Longway
إصدار الشهادات: ISO9001
رقم الموديل: ZGT-315-600
شروط الدفع والشحن:
الحد الأدنى لكمية: 1
الأسعار: negotiable
تفاصيل التغليف: حسب احتياجات العملاء
وقت التسليم: 20-30 يوم عمل ، والتي سيتم تعديلها وفقًا للمنتجات المختلفة والمخزون
شروط الدفع: ر/ر
القدرة على العرض: 20-30 يوم عمل ، والتي سيتم تعديلها وفقًا للمنتجات المختلفة والمخزون

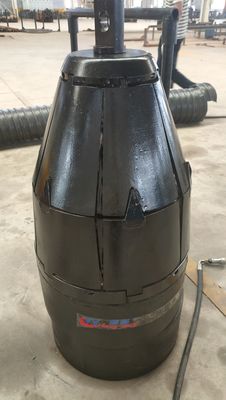

Pipeline Expander with Radial Expansion Force No Pipe Accumulation and Same-Diameter Replacement Pipeline Bursting Equipment

وصف
إبراز:

Radial Expansion Force Pipeline Expander,No Pipe Accumulation Pipe Bursting Equipment,Same-Diameter Replacement In-Situ Replacement System

,

No Pipe Accumulation Pipe Bursting Equipment

,

Same-Diameter Replacement In-Situ Replacement System

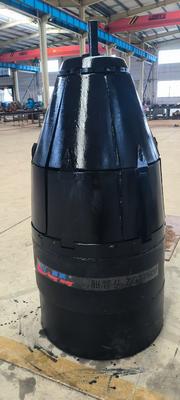

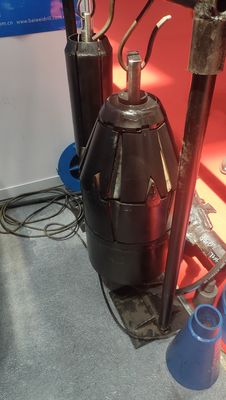

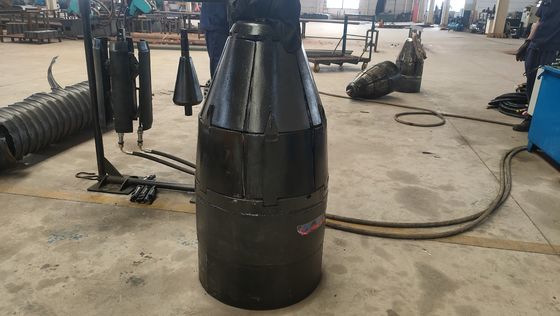

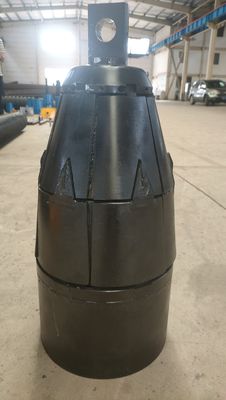

Pipeline Expander Pipeline In-Situ Replacement Whole Set With Pipeline Bursting Machine Underground Pipeline Construction
Pipe In-situ Replacement System—Expansion Method
Overview
The expansion method for in-place replacement utilizes specialized expander to generate controlled radial expansion forces within existing pipes. This uniformly enlarges or splits the old pipe diameter while simultaneously pulling new pipe into the expanded cavity. This single-pass process completes pipe rehabilitation by "expanding and replacing" without excavation or additional working pits.
Technical Advantages (Compared to Pipe Bursting)
  • Gentle Force Application: Utilizes radial expansion force rather than axial tension, subjecting manhole walls to minimal reaction forces and causing zero structural damage to chambers.
  • No Pipe Accumulation: Completely eliminates "pile-up" phenomena, ensuring smooth construction without pipe jamming risks.
  • Flexible Replacement: Supports both same-diameter replacement and one-size-up pipe diameter expansion (Up-size) to enhance flow capacity.
Equipment Features
Main System
  • Automatic threaded tie rod traction enables one-button push/pull operation, reducing labor intensity by 70%.
  • Lightweight quick-install locking kit at the manhole end allows single-person installation in 1 minute without heavy lifting.
Hydraulic Power Unit
  • Features automatic directional switching and pressure self-locking with dual overload and leakage protection.
  • Equipped with manual/automatic integrated solenoid valves and standard wireless remote control, enabling operators to work safely and efficiently away from the shaft opening.
Lightweight Quick-Install Locking Kit at Shaft Entry End
Pipeline Expander with Radial Expansion Force No Pipe Accumulation and Same-Diameter Replacement Pipeline Bursting Equipment 0
Pipeline Expander with Radial Expansion Force No Pipe Accumulation and Same-Diameter Replacement Pipeline Bursting Equipment 1
Frequently Asked Questions
What is your delivery time?
Our standard production time is approximately 20 days. For items in stock, we can ship within 3 business days.
How do you ensure product quality?
We conduct rigorous quality inspections and performance tests on every drill rod prior to shipment to guarantee reliability and durability.
Do you accept sample orders?
Yes, we welcome sample orders as an opportunity for you to evaluate our product quality before committing to larger quantities.
Are your drill pipes heat-treated?
Yes, all our drill pipes and casings undergo professional heat treatment to enhance their structural strength and operational performance.
Do your drill pipes have anti-rust protection?
Yes, each drill pipe and casing receives anti-rust paint or anti-corrosion oil coating before shipping. Galvanized options are available upon request.
